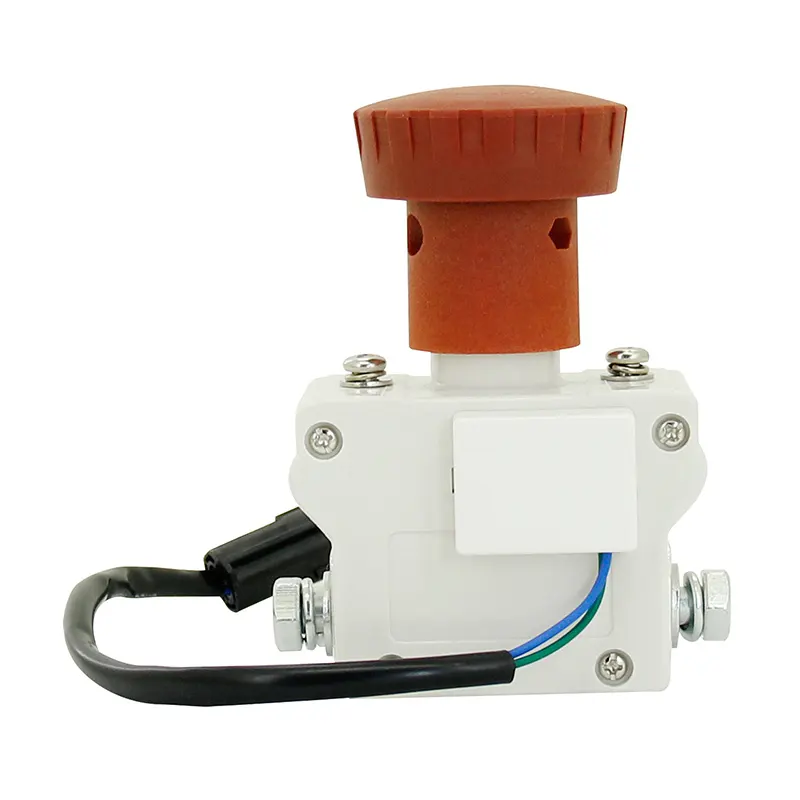

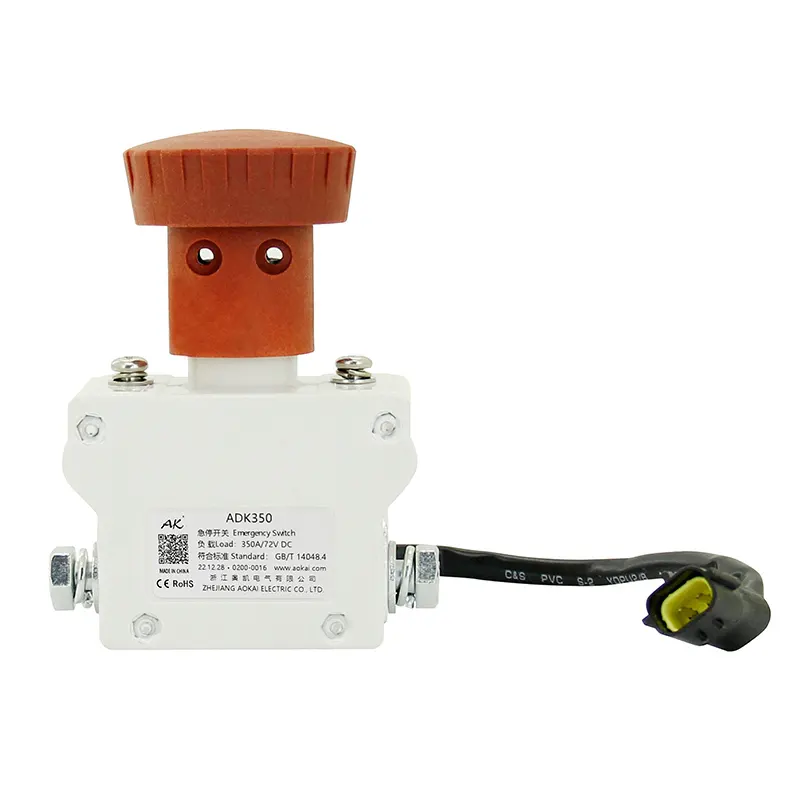

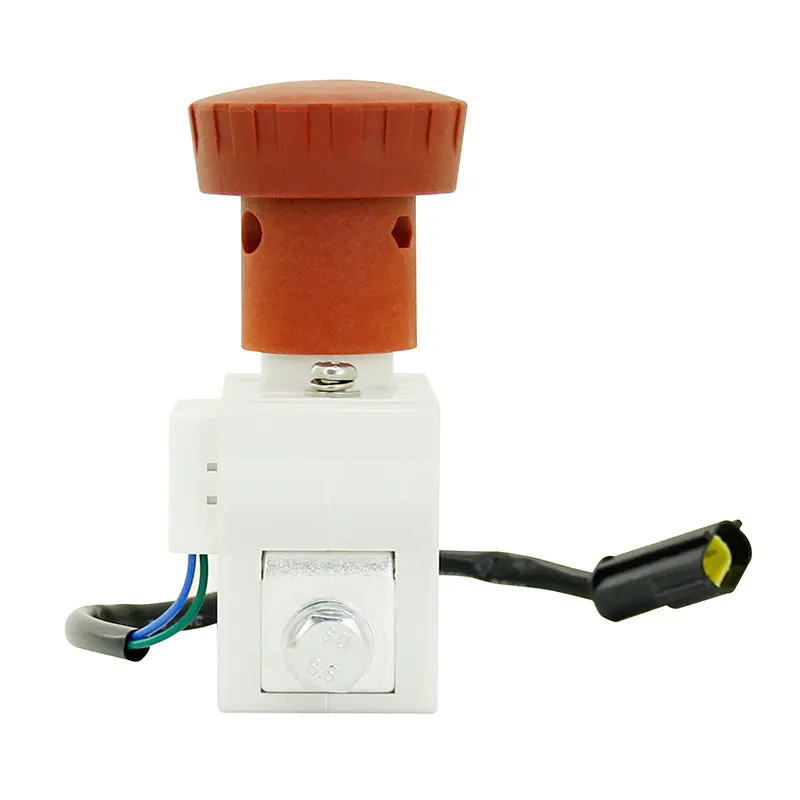

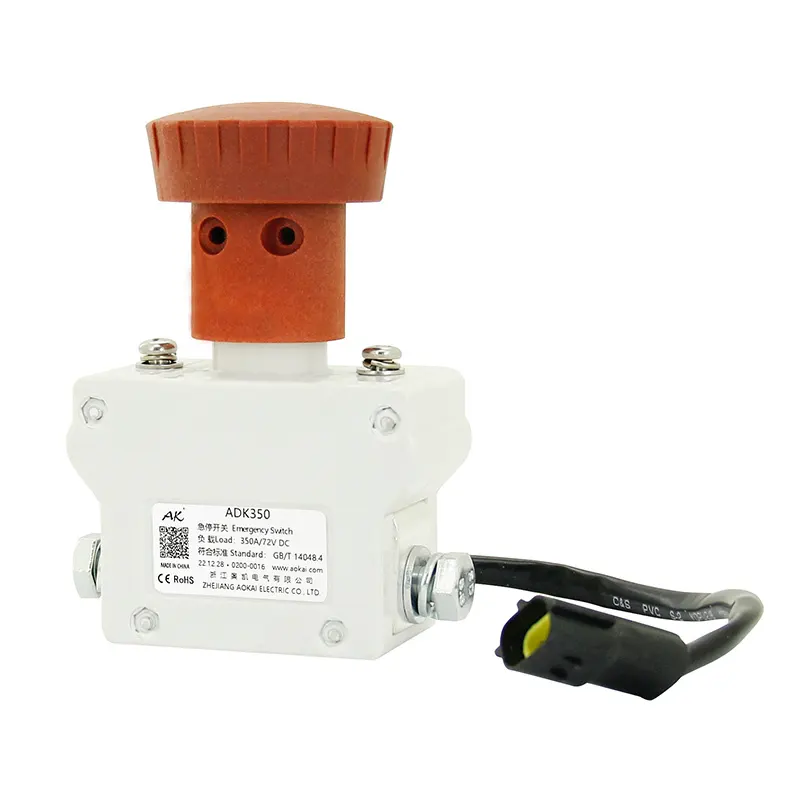

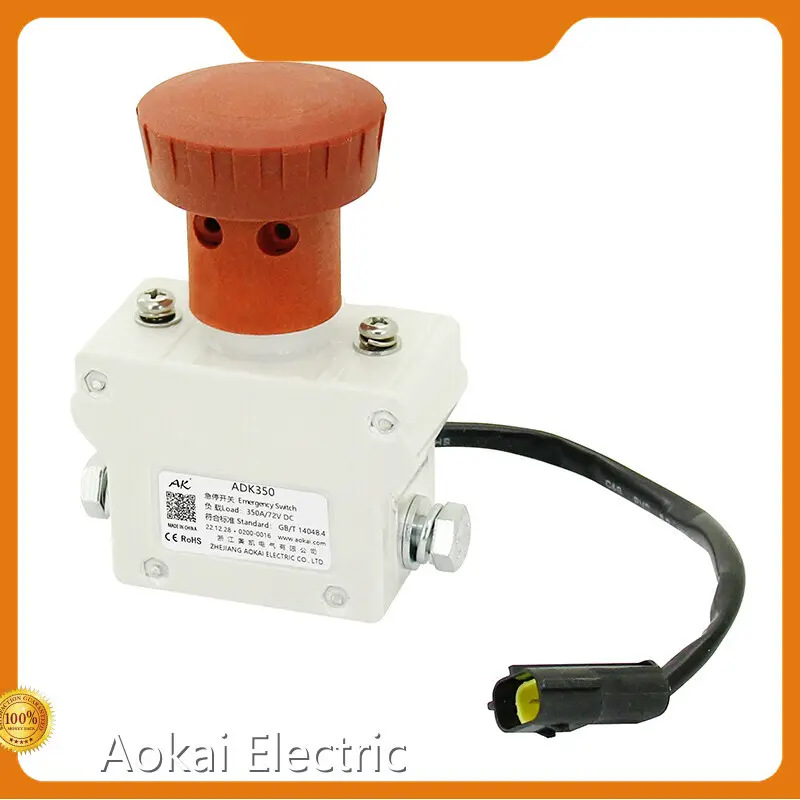

Emergency Button Switch Aokai Electric,
Company Advantages
· emergency button switch from Zhejiang Aokai Electric Co., Ltd is high-quality and cost-effective.
· The product has survived the rigorous quality and durability testings.
· Zhejiang Aokai Electric Co., Ltd draws up scientific emergency button switch methods and takes strict quality assurance measures.
Features
◪ Continuous 350A load, contact rated voltage ≤72V.
◪ It has one set of normally closed contact.
◪ The insulation resistance reaches 100MΩ (500VDC), and the withstand voltage between the load contacts is 2.5kV.
◪ IP protection level: IP40.
◪ Compliant with IEC 60664-1, GB/T14048.1 and GB/T14048.4 requirements.
◪ Compliant with RoHS (2015/863/EU), REACH (1907/2006/EC) requirements.
◪ Safety certificate: CE.
Specification
|
Performance Parameters (at 23℃) |
||
|
Contact Arrangement |
1B (1NC) |
|
|
Contact Resistance |
≤0.5mΩ |
|
|
Contact Voltage Drop |
≤80mV (at 350A) |
|
|
Overload Current |
≤7le, ≯1s |
|
|
Temperature Range |
-40℃~85℃ |
|
|
Load Terminal |
M8 Internal Thread |
|
|
Humidity |
5%~95%RH |
|
|
External Dimension |
75mmx38mmx123mm |
|
|
Operating Duty |
Continuous |
|
|
Electrical Durability with Load (Resistive) |
≥6,000 Times |
|
|
Closing Pulling Force |
30N≤F1≤50N |
|
|
Disconnecting Pushing Force |
30N≤F2≤50N |
|
|
Normal Closing Time |
≤100ms |
|
|
Normal Disconnecting Time |
≤50ms |
|
|
Dielectric Strength Between Main Contacts |
50Hz/60Hz 2,500VAC/1min |
|
|
Insulation Resistance |
Initial State |
100MΩ 1min |
|
After Electrical Life |
50MΩ 1min |
|
|
Shock |
Stability |
20g (Power On) |
|
Strength |
50g |
|
|
Vibration |
2.5g, 5~50Hz, 1/2 Sine Wave (Power On) |
|
|
Mechanical Durability |
≥50,000 Times |
|
|
Mounting Screw Torque M5 |
3-4N.m |
|
|
Load Wiring Torque M8 |
8-10N.m |
|
| Packaging Specifications | |||||||
| Product Model | Packaging | Min. QTY of Inner Packaging | Carton Size(LxWxH cm) | Net Weight/PCS(Max.) g | Total QTY(pcs) | Net Weight(Max.) kg | Gross Weight(Max.) kg |
| ADK350 | Pearl Cotton+Carton | 20 PCS/Layer | 56x38.5x21 | 360 | 40 | 14.4 | 16.9 |
| Note:1. Only one example of various typical packaging specifications for each product category is listed for reference.2. The actual weight of the packaging will fluctuate with the ambient humidity. For the specific batch weight, please contact your dedicated sales personnel. | |||||||
Product Introduction
This series Emergency Switch is used to connecting and emergency disconnecting of DC power supply systems of various vehicles and equipment, such as electric forklifts, electric vehicles, excavators, etc.
Model Coding
Wiring Diagram
Outline Installation Dimension Drawing
